Description
No need for messy wiring or disruptions to your home.
IT MAKES THE INSTALLATION PROCESS QUICK AND EASY SAVING TIME AND MONEY
Technical Specifications.
ENJOY FLEXIBLE INSTALLATION AND PLACEMENT OPTIONS
Model Number
T1070
Dimensions (HxDxW)
117 x 97 x 57 (mm)
Supply Voltage
220-240V AC @ 50Hz
Over-voltage Category
III
Standby Consumption
1W
Ambient Temperature
-20 to +35°C
Input Current (Max)
100mA
Measurement Accuracy
+/- 1%
IP Classification
IP20
Compliance
EN 60335-1:2012 – Household and similar electrical appliances – Safety – Part 1: General requirements.
EN 55014-1:2006 + A2:2011 – Electromagnetic compatibility (EMC) Requirements for household appliances (Emissions).
EN 55014-2:1997 + A1:2001 + A2:2008 – Electromagnetic compatibility (EMC) Requirements for household appliances (Immunity).
EN 55014-2:2006 + A1:2009 + A2:2009 – Limits for harmonic current emissions.
EN 61000-3-3:2008 – Limitation of voltage changes, voltage fluctuations and flicker.
Frequently asked questions
WIRELESS TECHNOLOGY

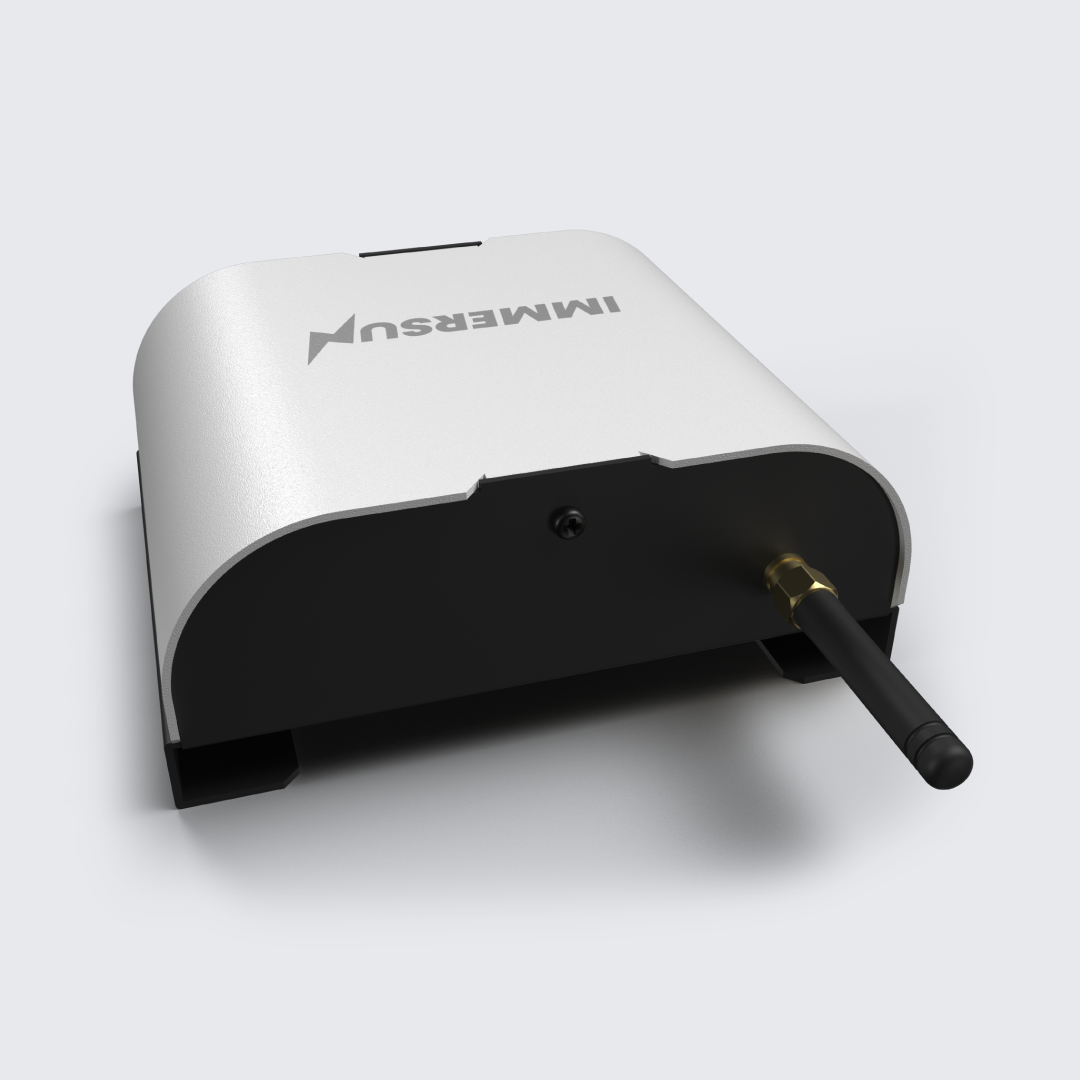

What is Immersun's wireless sensor?
Immersun’s wireless sensor is a device that extends the installation range of the Immersun power diverter, allowing you to install the power diverter in a location separate from the main electrical panel (up to 30m away).
How does Immersun's wireless sensor work?
The wireless sensor connects to the Immersun power diverter and wirelessly transmits information about the power diverter’s status and performance to the main electrical panel.
What are the benefits of using Immersun's wireless sensor?
The wireless sensor allows you to install the Immersun power diverter in a location separate from the main electrical panel, providing greater flexibility in installation and placement.
Can I use Immersun's wireless sensor with my existing Immersun power diverter?
Potentially, yes! The wireless sensor might be compatible with older Immersun power diverters. Contact us to find out more.
How do I set up Immersun's wireless sensor?
The sensor is easy to set up and comes with detailed instructions for setup.
Is the wireless sensor safe to use?
Yes, Immersun’s wireless sensor is designed to be safe to use and is compliant with all relevant safety standards.
